Subestação Secundária

26 de junho de 2026Produto de baixa tensão 8380

Visão geral

Secondary Unit Substation is a complete integrated power distribution solution designed to receive medium-voltage power, transform it to low voltage, and distribute it safely to downstream electrical loads. It normally combines medium-voltage switchgear, a distribution transformer, and low-voltage switchgear or switchboard into one coordinated system.

Vantagens do produto

Complete Integrated Power Distribution SolutionThe Secondary Unit Substation integrates medium-voltage switchgear, transformer, and low-voltage distribution equipment into one coordinated system.

Compact Design and Space SavingThe integrated layout reduces the space required for separate electrical equipment.

Reliable Medium-Voltage Protection and ControlThe medium-voltage section can be equipped with MV switchgear, load interrupter switchgear, or metal-clad switchgear according to project requirements.

Efficient Voltage TransformationThe transformer section converts medium-voltage power to low-voltage power for downstream distribution.

Especificações típicas

Função principal	Medium-voltage receiving, voltage transformation, low-voltage distribution
Tensão nominal	Project-based MV and LV voltage configuration
Transformer Capacity	Customized according to project load demand
Tipo de instalação	Indoor or outdoor installation available
Enclosure Option	Metal enclosure, weather-resistant enclosure, NEMA-type enclosure optional
Protection Functions	Switching, isolation, overload protection, short-circuit protection, grounding, metering

Apenas configuração típica. As potências nominais finais são confirmadas de acordo com os requisitos do projeto.

Aplicações

Secondary Unit Substation is suitable for projects that require a complete medium-voltage to low-voltage power distribution solution. It can be used as the main power distribution node for industrial, commercial, infrastructure, utility, and energy applications.

ÚLTIMO: Painel de distribuição – UL67PRÓXIMO: Solução para o Ar Livre

Recomendações relacionadas

NDB1-63 MCB miniature circuit breaker
2023年5月29日 1967
Application ●Short -circuit protection ●Over-load protection ●Isolation NDB1-63 dedicated to the low voltage power distribution system of industrial, buildings, energy communications and infrastructure. Specification: 1P+N:AC230/240V; 2P：AC400/...
Ver detalhes

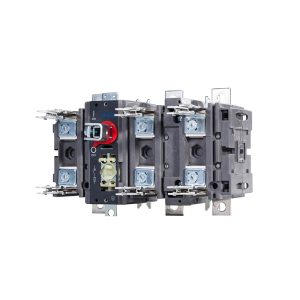

NDGR2-160 Isolating Switch
2023年5月26日 1667
Applications: NDGR2-160 isolating switch fuse group applied to ac 50 hz, rated voltage of AC400V, AC690V, rated current 160 a low-voltage distribution network, or motor as infrequently connected, breaking circuit and circuit isolation...
Ver detalhes

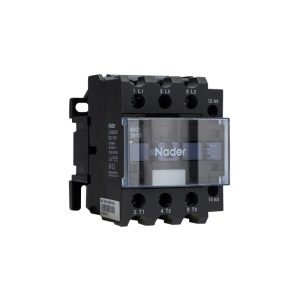

NDC1(Z)-38 AC Contactor with AC or DC Coil
