Hydraulic- magnetic circuit breaker, NDB3-30 Z4 1P Circuit Breaker for Equipment

2023年9月26日Produto de baixa tensão 16850

Certificações disponíveis UL A disponibilidade depende do modelo e da configuração.

Visão geral

NDB3-30 is a compact hydraulic-magnetic circuit breaker for equipment, covering low-current AC and DC circuits. It provides overload and short-circuit protection with configurable delay curves and actuator options.

Hydraulic- magnetic circuit breaker, NDB3-30 Z4 1P Circuit Breaker for Equipment

Vantagens do produto

Wide Current RangeRatings from 0.1 to 30 A support control and equipment circuits.

Hydraulic-Magnetic TripThe mechanism provides consistent protection across changing ambient conditions.

Configuração flexívelMounting, terminals, poles and actuator styles can be matched to the equipment.

Certified OptionsConfigurations are available to IEC, EN, UL and related requirements.

Especificações típicas

Corrente nominal	0.1–30 A
Tensão nominal	AC 250 V; DC 65 / 80 V
Poles	1 or 2
Tripping Type	Hydraulic-magnetic
Mechanical / Electrical Life	10,000 / 6,000 operations
Standards	IEC 60934, GB/T 17701, UL 1077, UL 489A

Apenas configuração típica. As potências nominais finais são confirmadas de acordo com os requisitos do projeto.

Aplicações

Suitable for automation controls, power supplies, communication equipment, transportation systems and other compact AC or DC equipment circuits.

ÚLTIMO: RCCB SVL1M-63PRÓXIMO: Circuit Breaker for Equipment, Oil damping product NDB3-50 J4 2P, Industrial Automatic Control

Recomendações relacionadas

Disjuntor em caixa moldada UL489 NDM3EU-225
2024年3月13日 1993
NDM3EU-225 is Electronic Mold Case Circuit Breaker which is satisfied UL489。The product is developed for the North America market demand,and it meets the UL489 standard molded case circuit breaker product.The rated insulation voltage of the produ...
Ver detalhes
SVM5H-320H MCCB de 1000 V CA
2023年11月24日 1740
General SVM5H series of moulded case circuit breaker is supplied with rated insulating voltage 1150V and used for circuit of A.C. 50Hz, rated operating voltage AC 1140V. (or below), rated operating current up to 630A for infrequent changing over a...
Ver detalhes

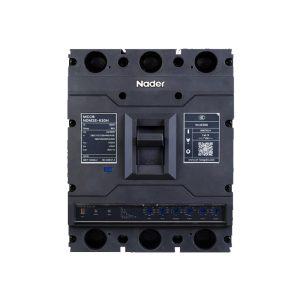

NDM2E-630(M,H)
